Battery Tender 021-0128 Battery Tender Plus 12V Battery Charger

Battery Tender 021-0128 Battery Tender Plus 12V Battery Charger Review



Battery Tender 021-0128 Battery Tender Plus 12V Battery Charger Feature

  • Solid state two color LED indicates stage of charger; a quick connect harness for use in hard to reach areas
  • Perfect for all lead-acid, flooded or sealed maintenance free batteries (AGM and gel cell)
  • Complete 4-step charging program (initialization, bulk charge, absorption mode and float mode) that maintains batteries at full charge without overcharging via its 4-step charging system
  • Automatically switches to float/maintenance mode voltage after fully charging the battery
  • Temperature compensated to ensure optimum charge voltage according to ambient temperature, and spark proof and reverse polarity protected; 10-year limited warranty
The Battery Tender Plus 12-volt/1.25-amp Battery Charger is the convenient solution to the challenge of keeping 12-volt vehicle batteries optimally powered when not in use. It is able to charge any lead-acid battery--including standard and sealed AGM and Gel Cell battery types and is also designed to be easy to use in difficult spaces, to utilize a 4-step charging program and safely function in a fully automatic mode. Taken together this makes the Battery Tender Plus 12-volt/1.25-amp Battery Charger an excellent means of ensuring that your battery is fully charged and ready to go when you are.

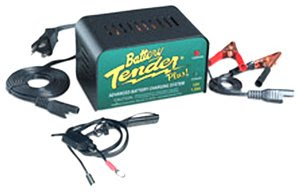

The Deltran Battery Tender Plus 12-volt/1.25-amp Battery Charger with alligator clips, loop connectors and cable
4-step charging with automatic float mode.
View larger.
The 4-step charging cycle detailed for the Deltran Battery Tender Plus 12-volt/1.25-amp Battery Charger
The 4-step charge cycle detailed.
View larger.
Safe, 4-step Battery Charging
The Battery Tender Plus 12-volt/1.25-amp Battery Charger is much more than a trickle charger. Powered by BTP microprocessor technology, it has a "brain". Utilizing a 4-step charging program (initialization, bulk charge, absorption mode and float mode), it allows you to simply connect the charger to a battery, either in or out of a vehicle, and forget about it until you are ready to put the battery to work. Like all Battery Tender chargers, at the end of the regular charger cycle the it automatically switches its output voltage to a safe, storage or float level that eliminates the need to worry about the damaging effects of overcharging, and the resulting need to check on the condition of the battery. If or when the battery voltage drops too far under load, output power resumes and the charging cycle begins again. The unit also features sparkproof connectors, short circuit and reverse polarity protection, an easy to understand charging status LED indicator, a quick connect harness for use in hard to reach areas and almost no current draw from batteries connected to.

Key Features:

  • Perfect for all lead-acid, flooded or sealed maintenance free batteries (AGM and gel cell).
  • Complete 4-step charging program (initialization, bulk charge, absorption mode and float mode).
  • Automatically switches to float / maintenance voltage after fully charging the battery.
  • If the battery voltage drops too far under load, full charger output power resumes.
  • Temperature compensated to ensure optimum charge voltage according to ambient temperature.
  • Solid state two color LED indicates stage of charger.
  • Spark proof and reverse polarity protected.
  • Includes quick connect harness for use in hard to reach areas.
  • 10 year warranty.
Charger Models
Output Voltage
Output Current
Charging Software*/
Battery Type
AC Voltage/
Frequency Input
(Volts)
(Amps)
Battery Tender Junior 6V Battery Charger6V0.750A3 Step STD & AGM120 VAC, 60 Hz
Battery Tender Junior 12V Battery Charger12V0.750A4 Step STD & AGM120 VAC, 60 Hz
Waterproof 800 12V Battery Charger12V0.800A3 Step STD & AGM100 to 240 VAC, 50/60 Hz
Battery Tender Plus 6V Battery Charger6V1.25A4 Step STD & AGM120 VAC, 60 Hz
Battery Tender Plus 12V Battery Charger12V1.25A4 Step STD & AGM120 VAC, 60 Hz
Battery Tender Plus 12V Battery Charger (Gel Cell)12V1.25A4 Step STD & AGM or GEL120 VAC, 60 Hz
Battery Tender Twin 800 12V Dual Battery Charger12V0.800A3 Step STD & AGM100 to 240 VAC, 50/60 Hz
Battery Tender 12V 2-Bank Battery Management System12V1.25A3 Step STD & AGM100 to 240 VAC, 50/60 Hz
Battery Tender 12V 4-Bank Battery Management System12V1.25A4 Step STD & AGM100 to 240 VAC, 50/60 Hz
Battery Tender 12V 5-Bank Battery Management System12V2.0A 4 Step STD & AGM120 VAC, 60 Hz
Battery Tender 12V 10-Bank Battery Management System12V2.0A 4 Step STD & AGM120 VAC, 60 Hz
*Note: All Deltran battery chargers will charge all types of lead acid batteries: either flooded (standard STD), sealed maintenance free Absorbed Glass Mat (AGM), or sealed maintenance free gelled electrolyte (GEL) batteries. However, for optimum battery performance in deep cycle applications (for example, running a trolling motor), it is best to chose the Deltran charger that has the charging software specifically designed for the battery type. Fortunately, since the technical staff at Deltran has developed charging software that works equally well for both STD & AGM batteries, the only choice to be made is between 2 models: either STD & AGM or GEL software.

10-Year Limited Warranty
Deltran provides a limited 10-year warranty on its Battery Tender Plus 12-volt/1.25-amp Battery Charger to the original purchaser based on defective material or workmanship. Warranty is void in cases of product misuse, disassembly or modification. Other details regarding warranty limitations and procedures are contained in the Deltran Battery Tender Charger's general limited warranty information sheet enclosed with this product.

BatteryTender Plus is the most advanced charger/maintainer on the market specially designed for today's sealed lead acid batteries. The BT Plus uses micro-processor technology in a four stage charging profile to charge, improve, and float your battery so it is ready when your are. Constant current charging and regulated voltage patterns allow the battery to be recharged fully and safely without the fear of overcharging.
